Data Persistence ​

In the SimpleAffineEditor example, we did not actually use the data persistence capability of BlockSuite. This means that the blocks created by the user will disappear after the page is refreshed. How can we store these contents to a server or local database?

BlockSuite uses CRDT data model that is very similar to Git. This means that when you call methods like page.addBlock, this is equivalent to synchronously committing to Git (all block operation APIs in BlockSuite are synchronous, which brings a very convenient and reliable development experience). And thanks to the capability of CRDT, it can efficiently serialize the entire block state sequence into binary.

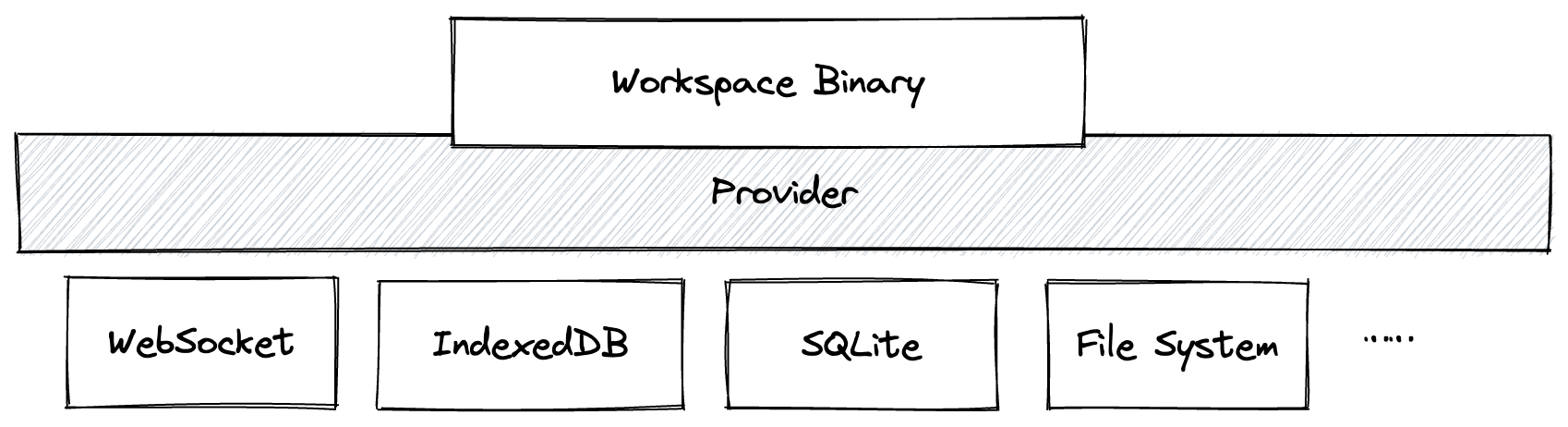

However, the more powerful aspect of the Git model is that you only need to connect via SSH or HTTP to sync a Git repository, without worrying about handling asynchronous network IO details. This is why BlockSuite provides a provider-based persistence solution. Different providers can handle the asynchronous IO over different network protocols (such as WebSocket and WebRTC) and storages (such as IndexedDB and SQLite). As long as the BlockSuite workspace is connected to the provider, you can reliably synchronize blocks through it.

Code example:

import {
  Workspace,
  AffineSchema,
  IndexedDBDocProvider,
} from '@blocksuite/store';

const workspace = new Workspace({
  id: 'foo',
  providers: [IndexedDBDocProvider],
});

workspace.register(AffineSchema);

The content in this workspace will be automatically synchronized to an indexedDB table named foo. Now you can add a button to the page and execute the following code when it is clicked:

const page = workspace.createPage('page0');
page.addBlock('affine:page', { title: new Text('hello') });

The document data will be automatically synchronized to IndexedDB. After the next refresh, the content of affine:page should appear directly on the page. If you want to use a WebSocket connection, you can achieve the same persistence effect with very similar code logic by switching or using providers simultaneously.

You can view more provider usage instructions in the BlockSuite Playground.

The persistence we are introducing now only involves the internal CRDT data format used by BlockSuite. Importing and exporting to different document formats will be covered when introducing the editor.
